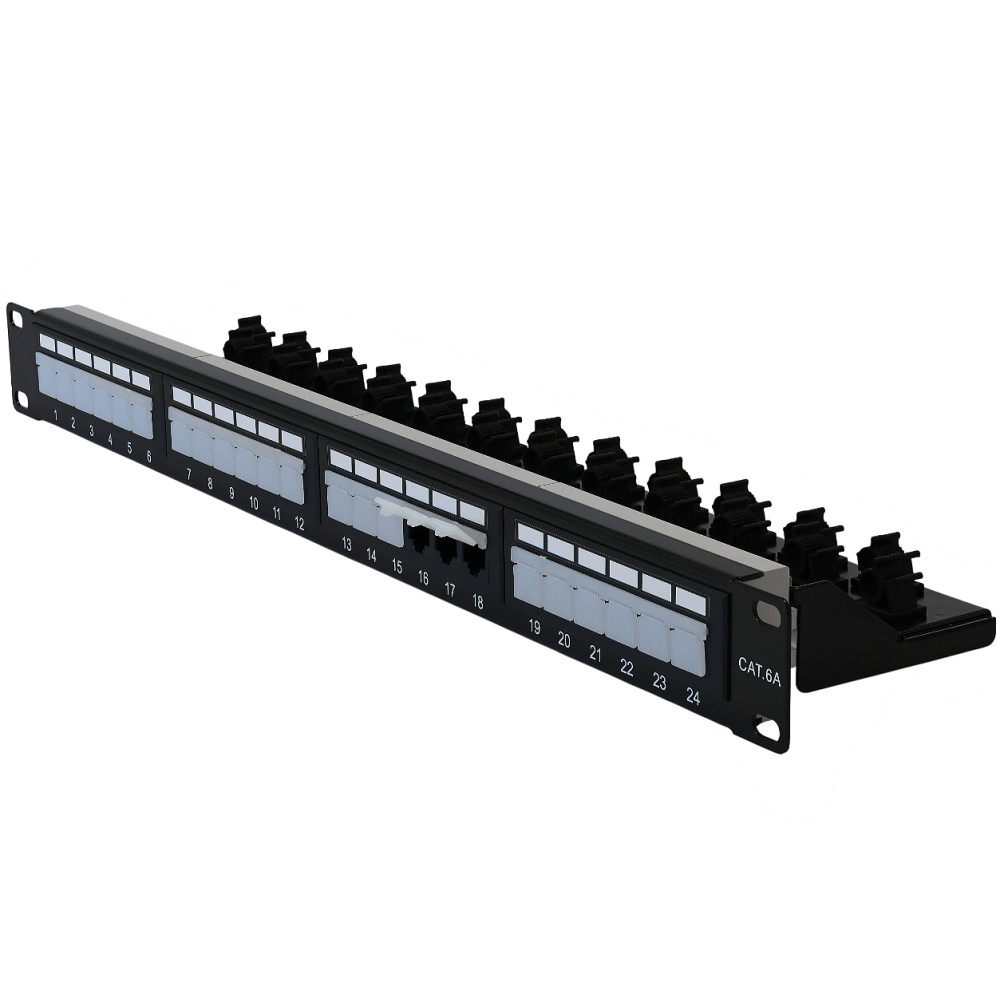

CAT6A 24Ports 110 IDC Patch Panel

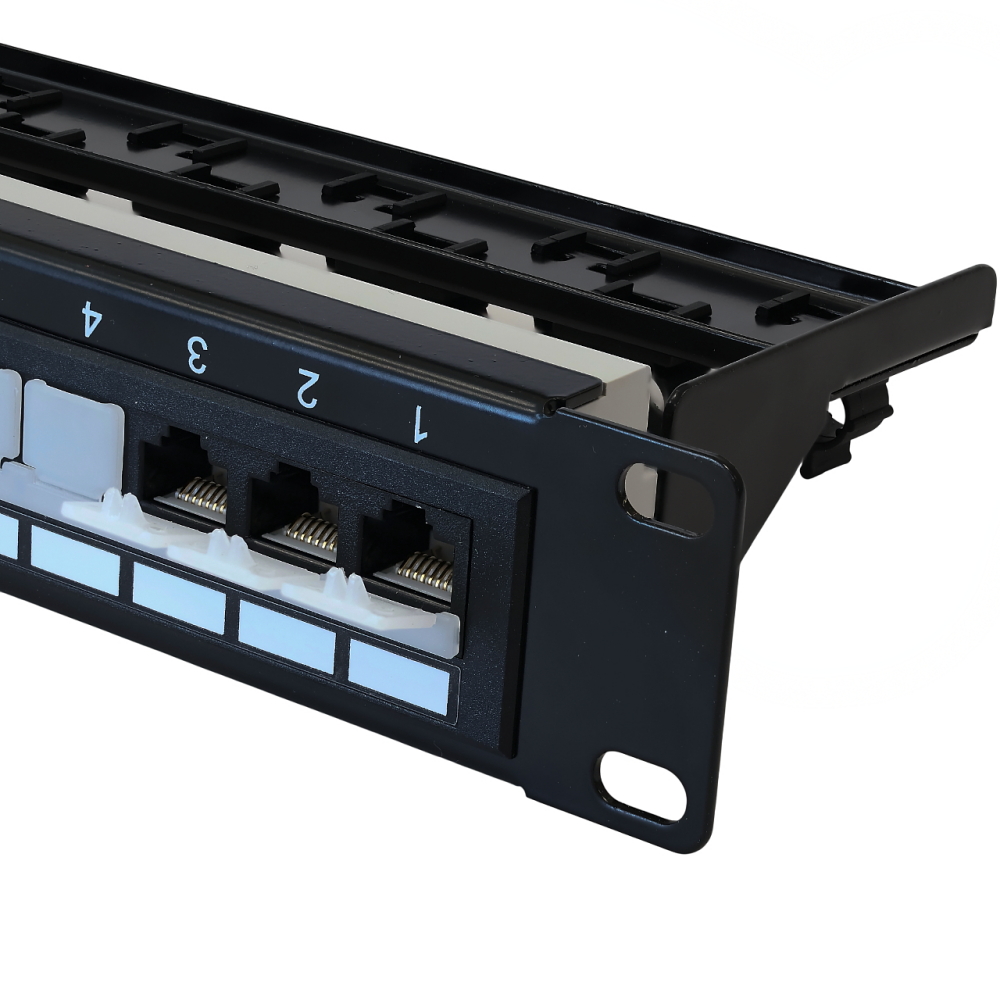

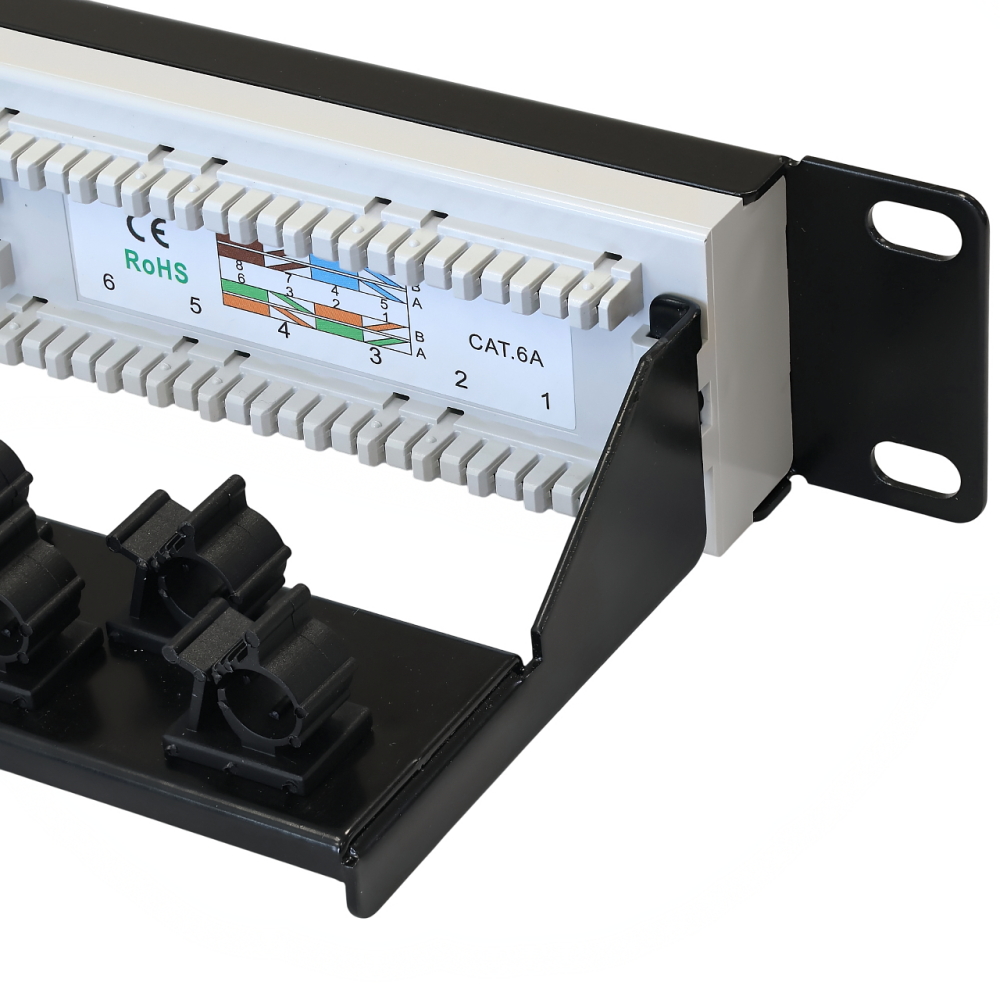

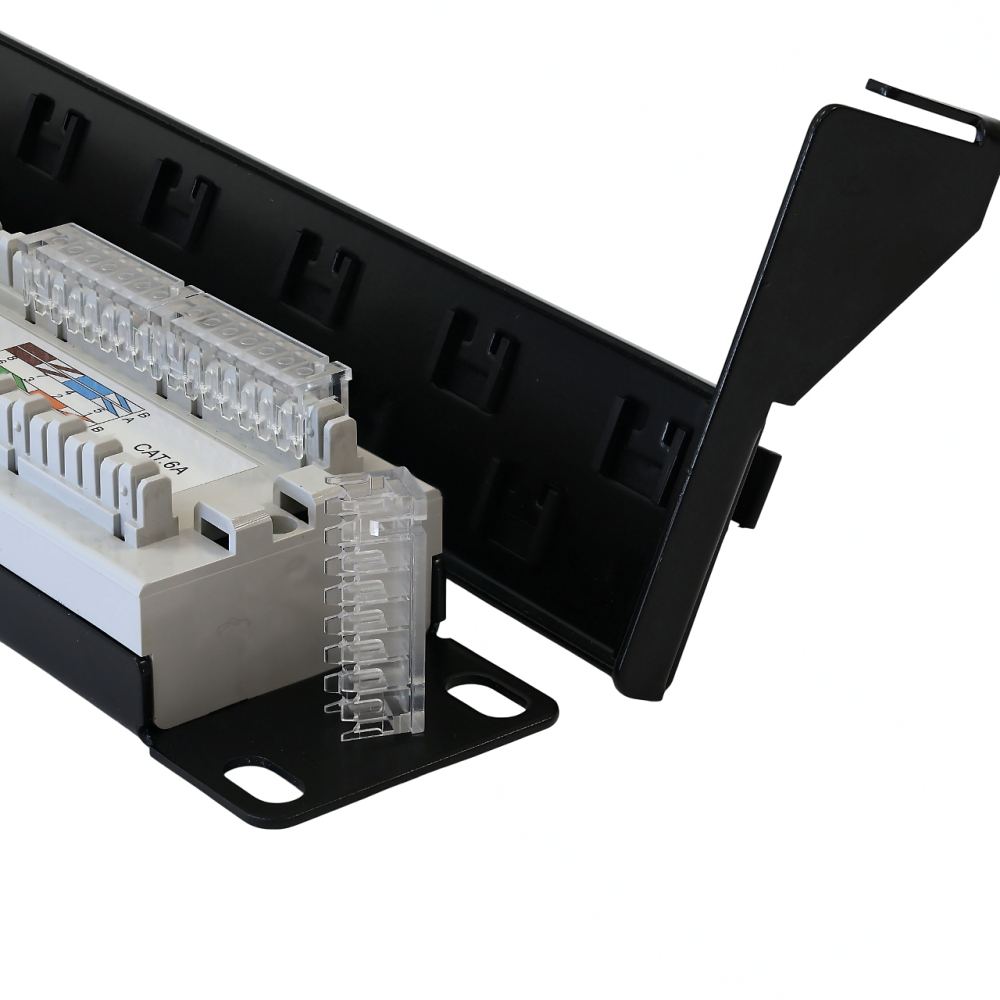

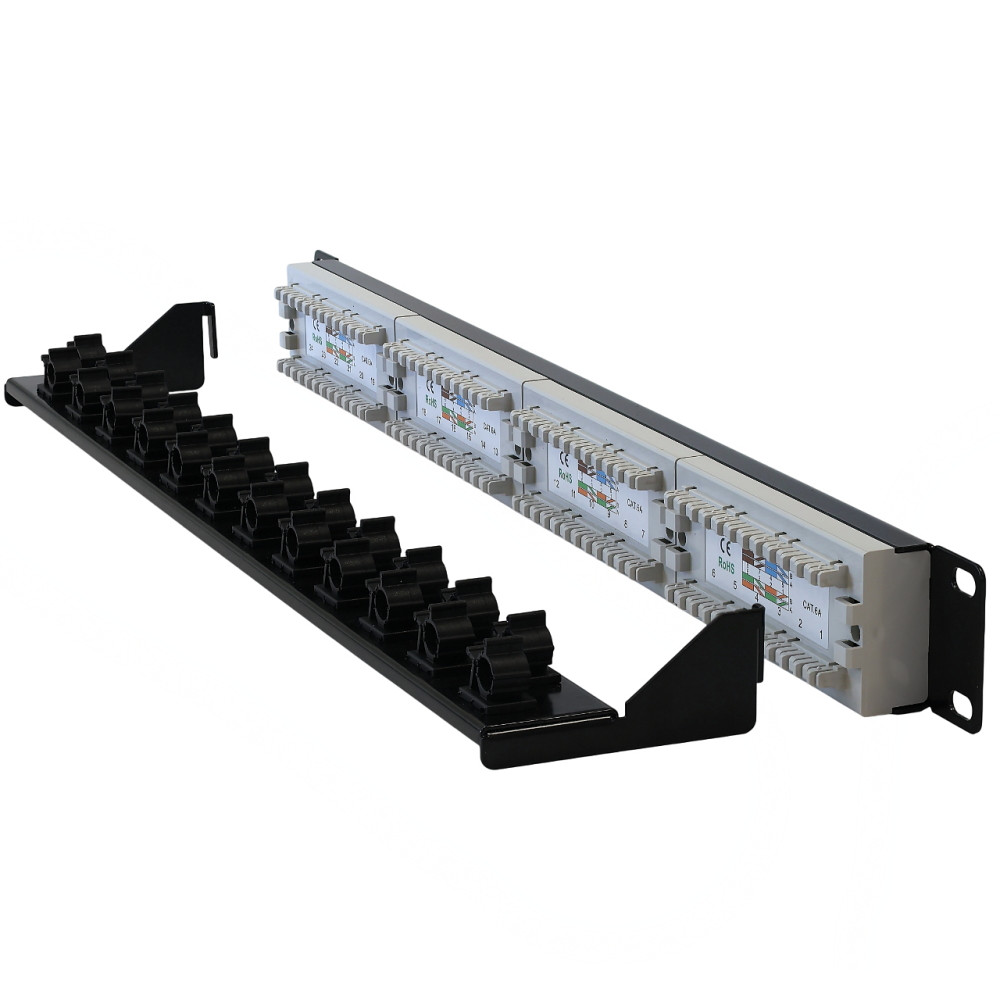

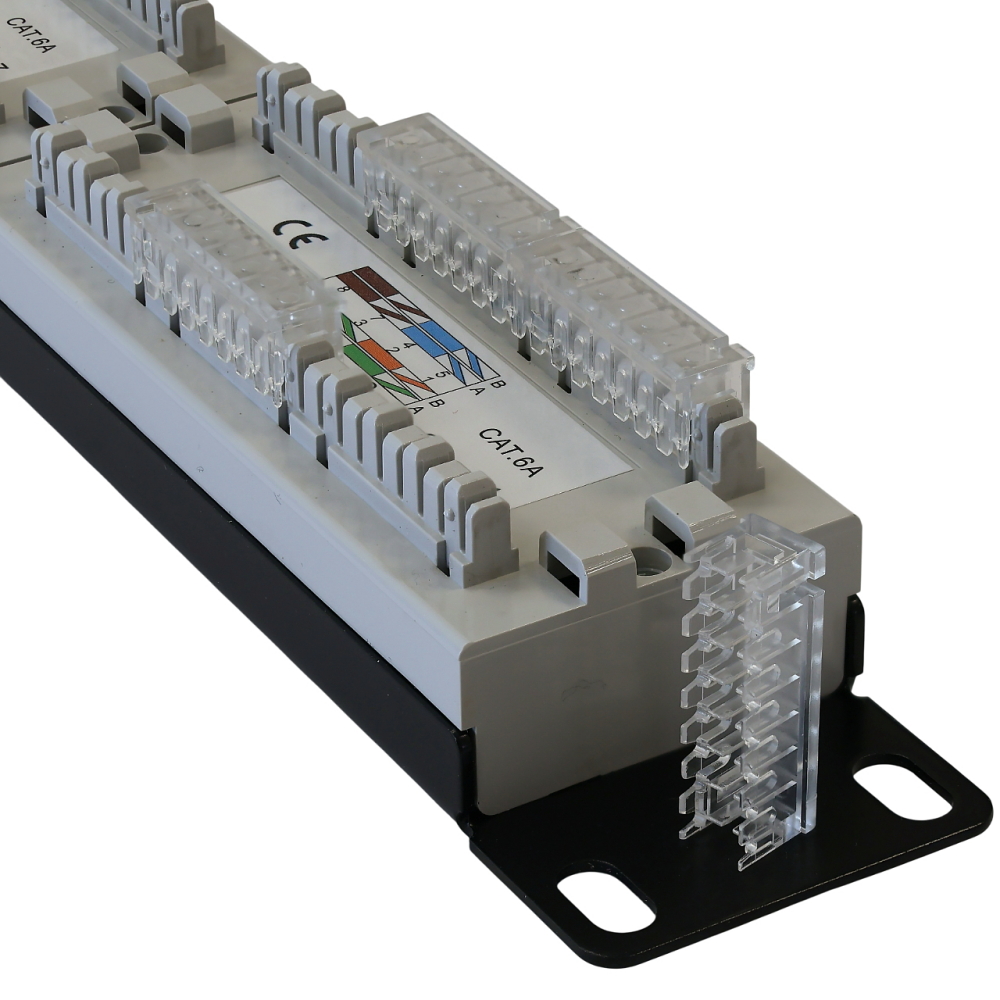

Patch panel cat. 6a UTP is installed in a server cabinet or rack and is used to connect a twisted pair from the side of the switching point with active network equipment. Mounting height 1U in rails 19 inches for four mounting points. The base of the panel is made of steel with plastic inserts for RJ-45 connectors. Ground connection is not provided, the patch panel is unshielded. On the front side of the patch panel there are 24 ports with RJ-45 connectors for connecting patch cords. Numerically labeled with additional space for port signatures. The ports are protected by plastic plugs. On the back side there is a board on which plastic modules with copper knives are installed for disconnecting the twisted pair using the "driving" method. The color scheme A and B is applied. The twisted pair is supplied and fastened with plastic ties to the cable organizer, designed for 24 links.
